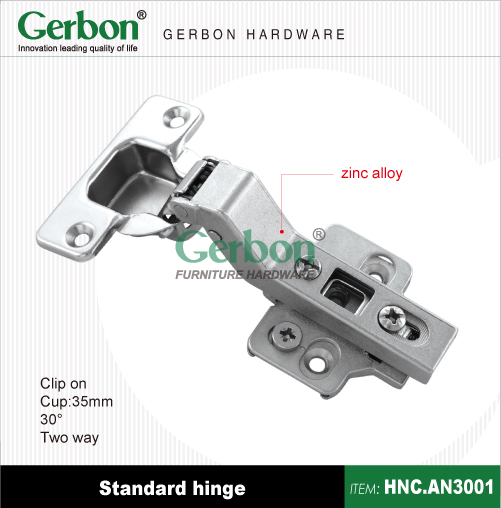

Standard Hinge

HNC.AN3001

30 degrees  furniture hinge

Product details:

Name:

30 degrees furniture hinge

Item No.:

HNC.AN3001

Material:

Steel

Finished

Brass first, then nickel plated

Salty test:

36 hours

Open and close times

80000 cycles

Cup diameter

35mm

Door (C) dimension

3-8mm

Depth of the cup

11.5mm

Door thickness

14-21mm

Opening angle

30degree

Brand

Gerbon



Advantages for cabinet & furniture user:

1. Long lifetime of the furniture & cabinet

2. Easy assembly:quick fitting
3. Adjustable plate, 2holes, 4holes are all available

4. Zinc alloy material of arm is available

5. Excellent durability

6. Customer's Logo: available

7. Passed 80000 open-close test

8. Passed salt and mist for over 36 hours

9. Competitive price

10. Screws with polybag are available

11. Knock in dowel as M5/M8/M10/M12 are all available

12. Passed ISO9001:2008



About Gerbon:

Gerbon is...

...a highly-regarded partner in furniture, cabinet, bathroom and property development. Gerbon's comprehensive hardware technology supply solutions include: hydraulic hinge, standard hinge, soft close slide, standard slide, handle, caster, lock, and other furniture fittings.
